10000gs 12000gs Drawer Round Grate Magnet Separation Equipment

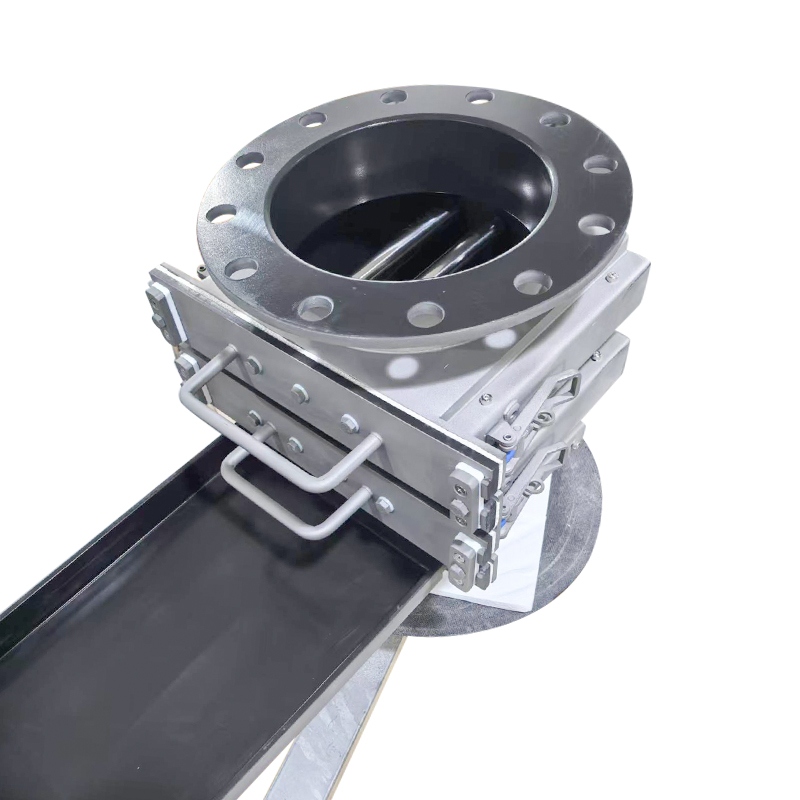

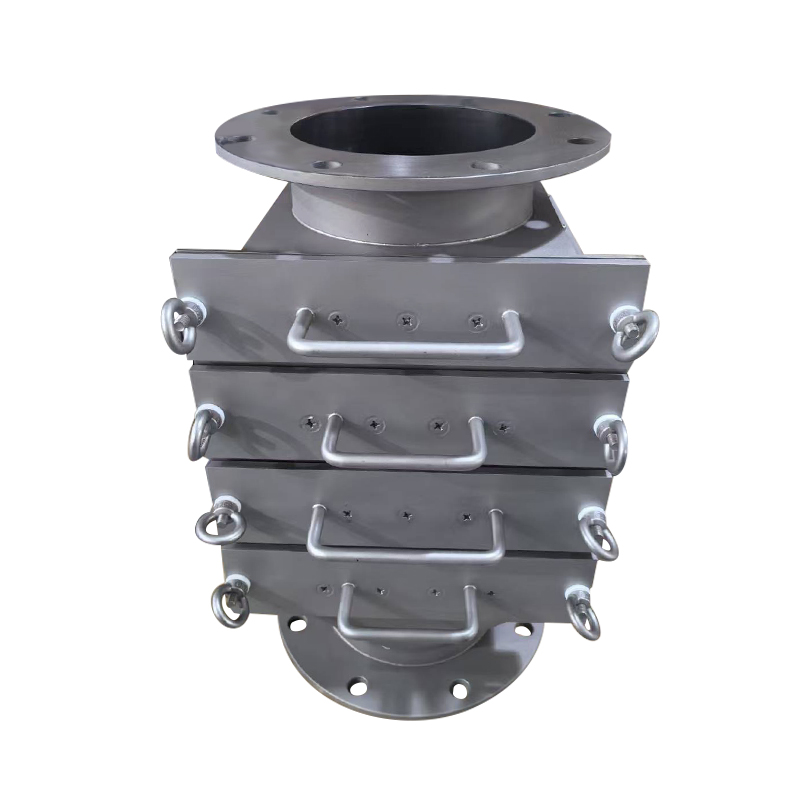

Drawer Magnetic Separator

Basic structure:

Drawer-type magnetic rod rack: Multiple magnetic rods are arranged in parallel to form a high-intensity magnetic field area

Stainless steel casing: Usually made of 304/316 stainless steel, it is corrosion-resistant and meets food/pharmaceutical hygiene standards.

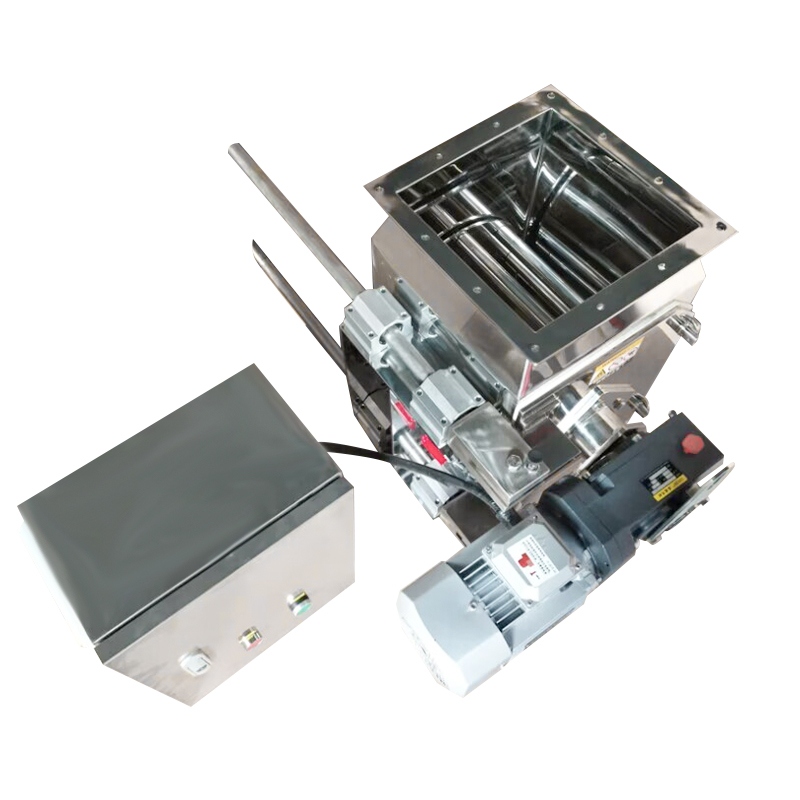

Convenient cleaning mechanism: Simply pull out the drawer to manually or automatically clear impurities without interrupting the production process.

Features:

1. Normal magnetic drawer(N Style) with max magnetic strength 12000Gs andEasy-cleaning magnetic drawer (E Style) with max 8000Gs are available.2. Square chutes and round pipelines flange can be chosen to suit eachcustomer s requirement for easy installation.3. Standard working temperature ≤80℃, if needed, Max working temperaturefrom 80℃ to 350℃ is also available.4. One row, two rows or more rows magnetic grid can be produced according tocustomer requirement.5. Housing and magnetic tube material are 304 or 316L stainless steel ascustomer request.

Applications:

Magnetic Drawers are designed for efficient fine iron and ferromagneticcontamination removing from a range of dry free flowing powdery, scrap,granule product such as sugar, grain, tea, etc. They are widely used in field ofceramics, chemicals, pharmacy, food, plastic, rubber dyestuff, mining,environmental protection, etc.

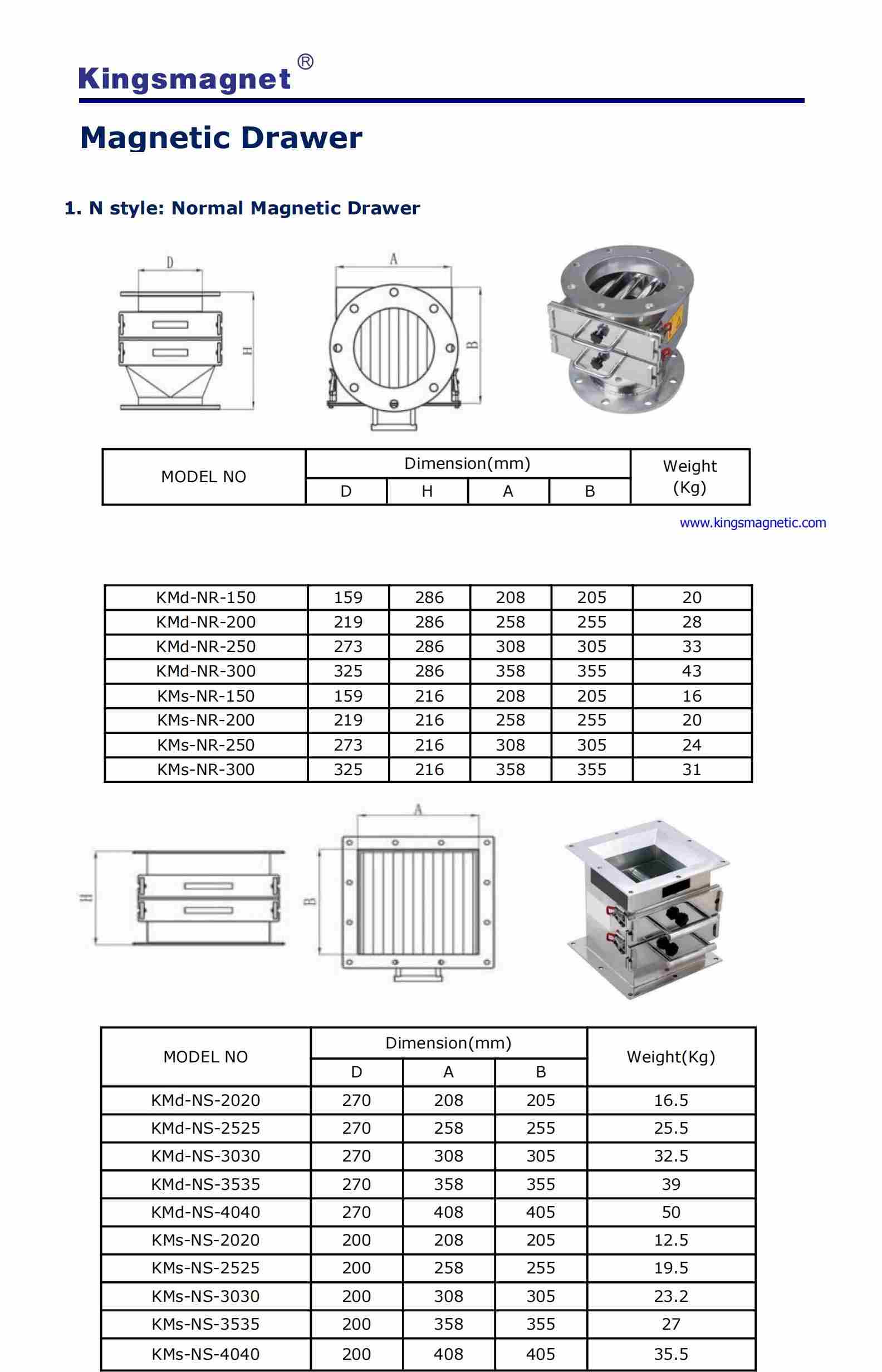

Note:

"d" stand for double rows

"s" stand for single rows"N" stand for standard type"R" stand for round flange top"S" stand for square flange top

Product classification

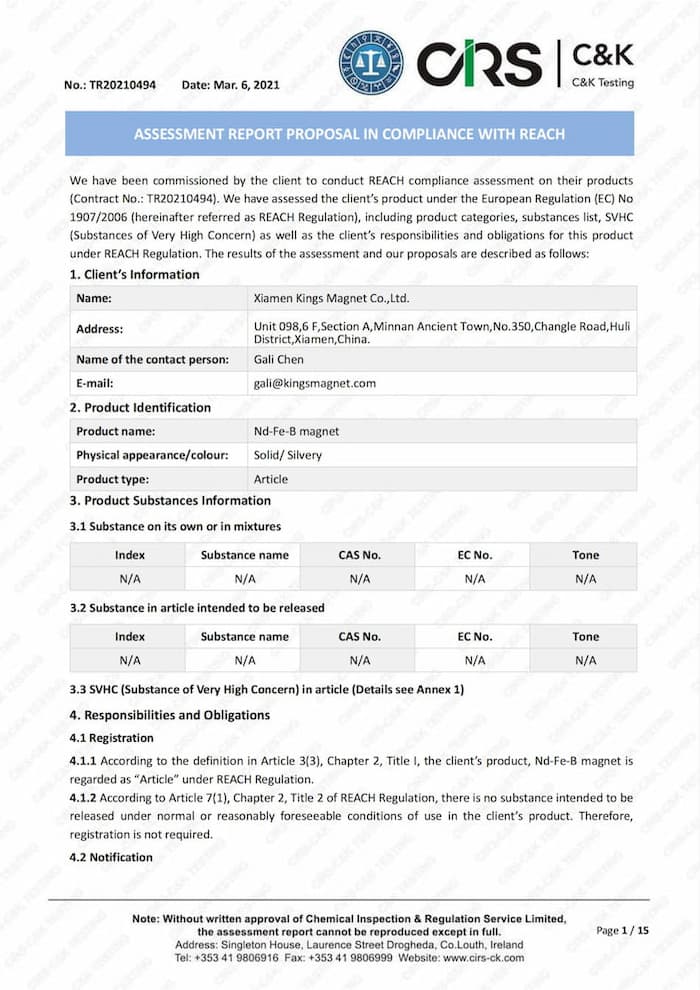

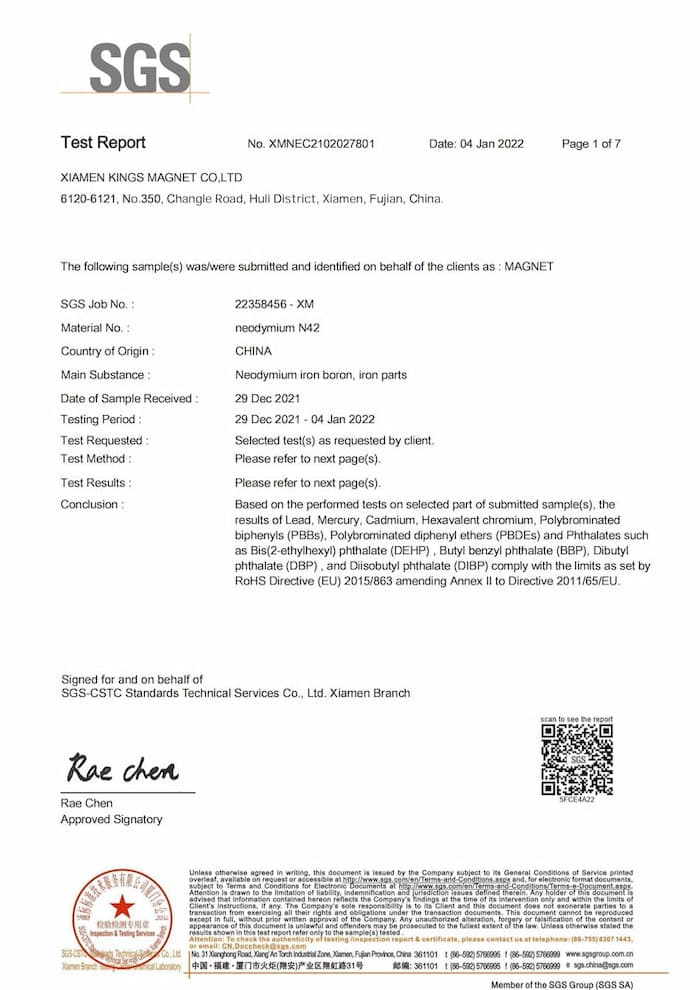

Certificate
