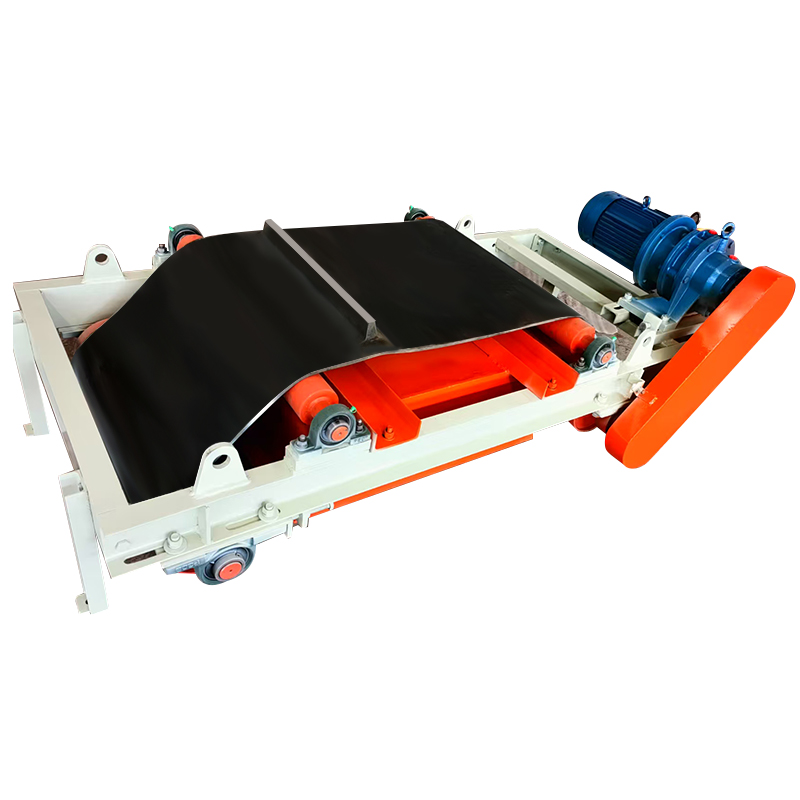

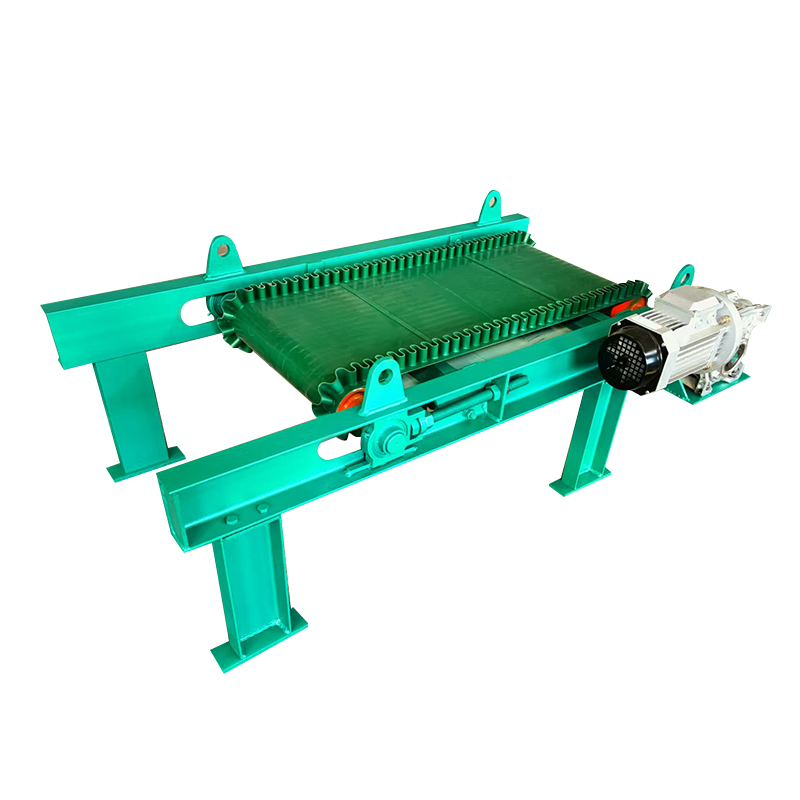

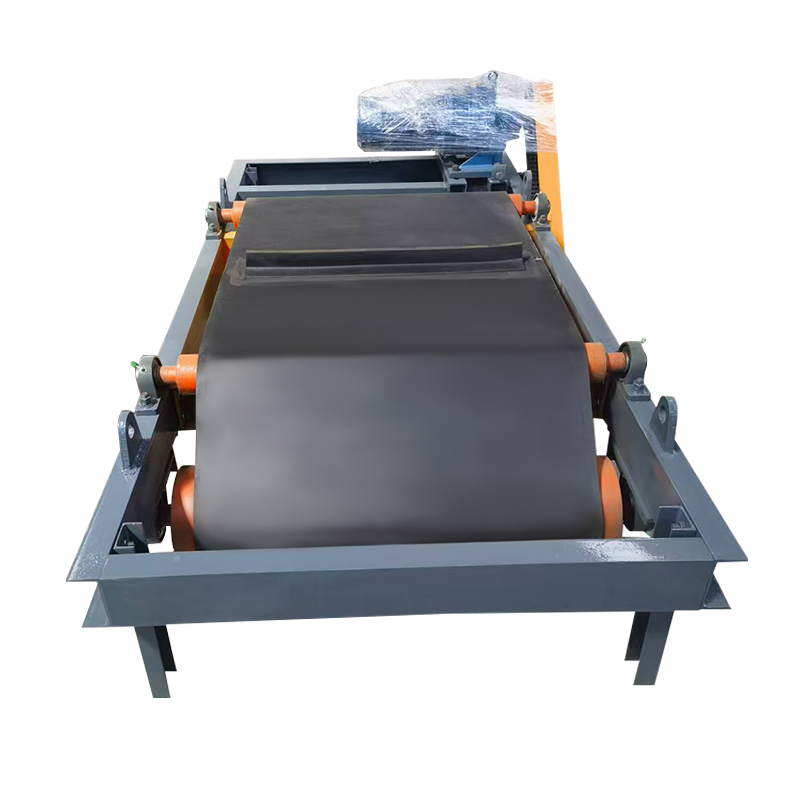

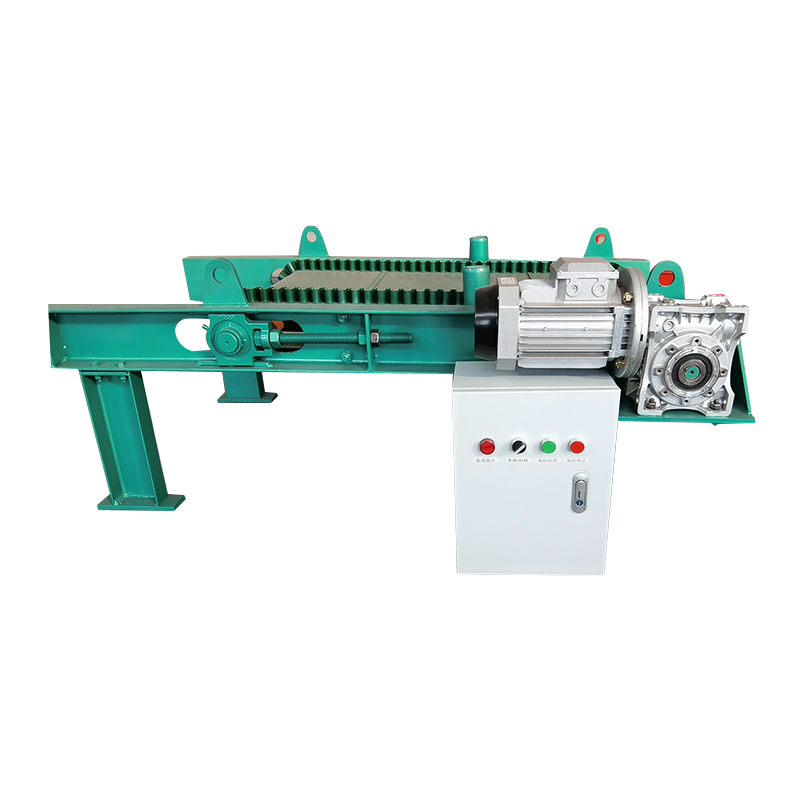

Dry Cross Belt Conveyor Magnetic Separator

KMYD(C) series self-cleaning permanent magnetic separator made by high-performance NdFeB rare earth, the machine consists of permanent magnet core, unloading iron belt, reducer motor, frame, driven rollers and other parts, used for variety of conveyor. Adsorb ferromagnetic material from a non-magnetic materials. It have an automatic unloading iron device. The ferromagnetic material is automatically thrown by unloading iron belt device, so as to achieve the purpose of the automatic-unloading iron. The machine have a wide range of applications, energy saving, easy maintenance, the failure rate is very low, stable and reliable operation in extremely harsh environment.

Suction Distance: 10-45CM

Model: KMYD(C)

Processing Capacity: 30 (M ³/H)

Applicable Fields: steel bars, iron wires, iron nails, screws, iron plates and blocks, excavator bucket teeth, hammer heads, etc

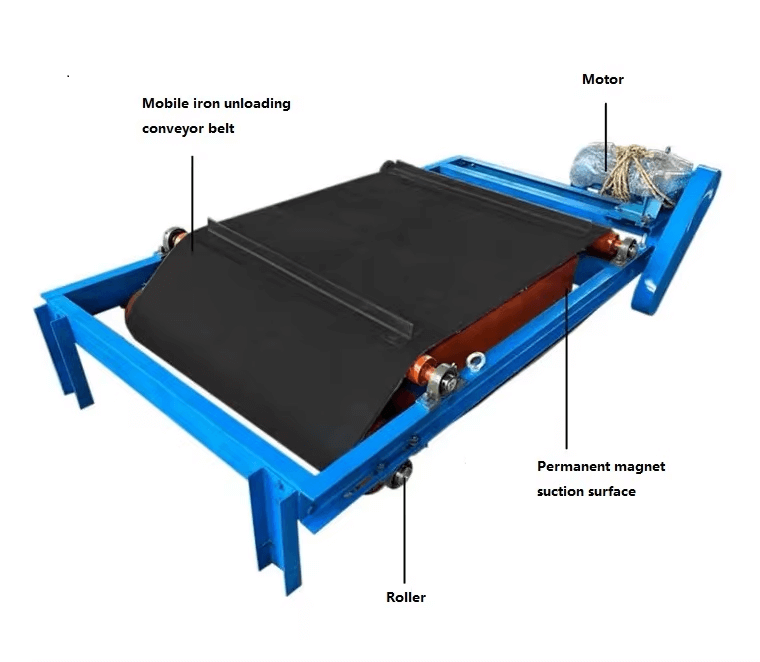

What does a set of products include?

Product Features:

1. Magnetic circuit design using computer simulation, perfect double pole structure.

2. NdFeB material is magnetic source, high coercivity, high magnetic field strength.

3. Automatic clean iron, easy maintenance,wide application.

4. Transmission drum with drum-type structure, the belt automatic correction function, dust-proof housings, mechanical failure is low.

How to install?

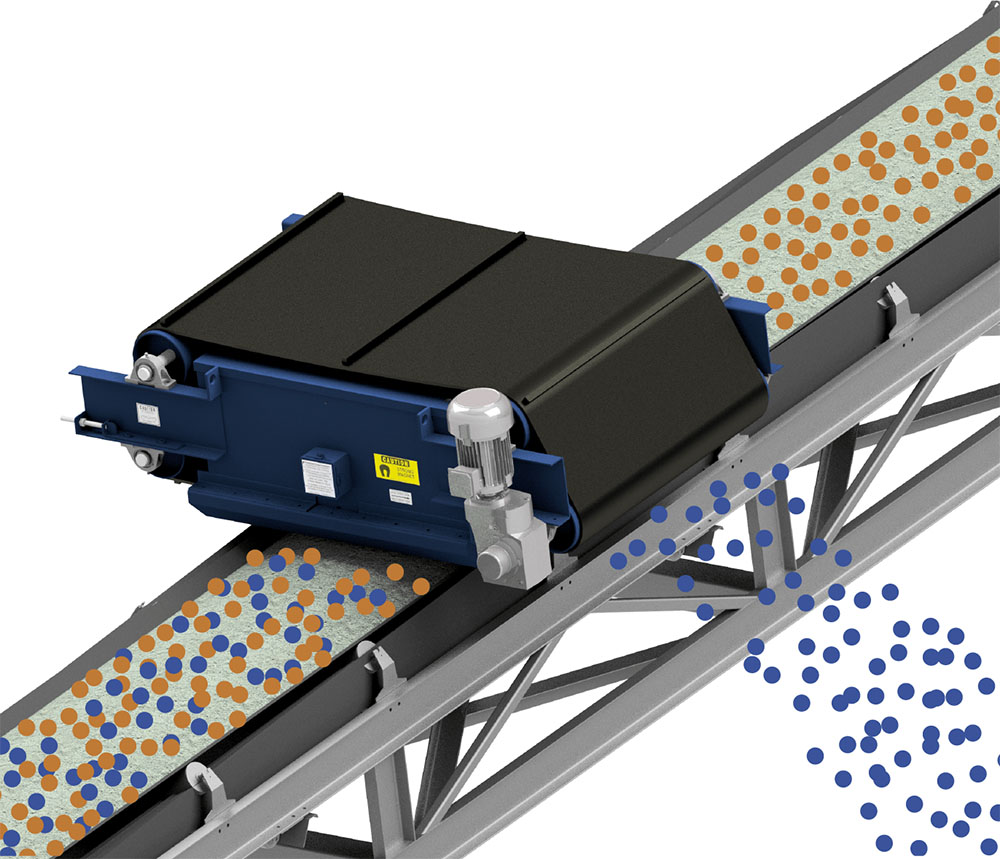

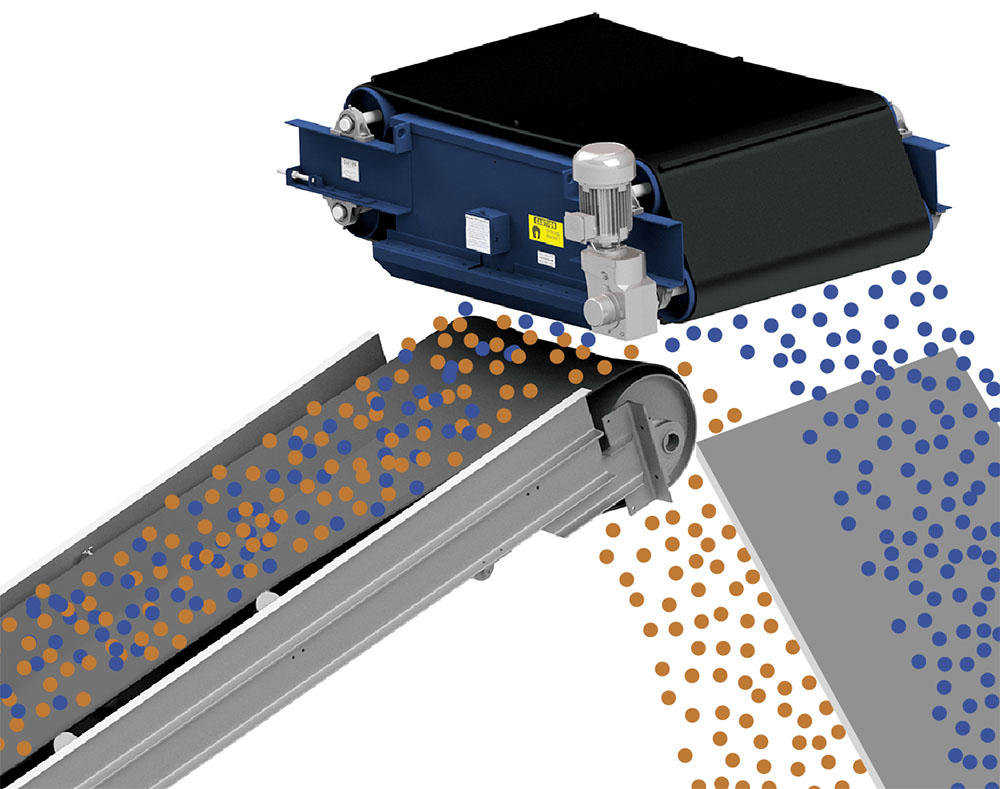

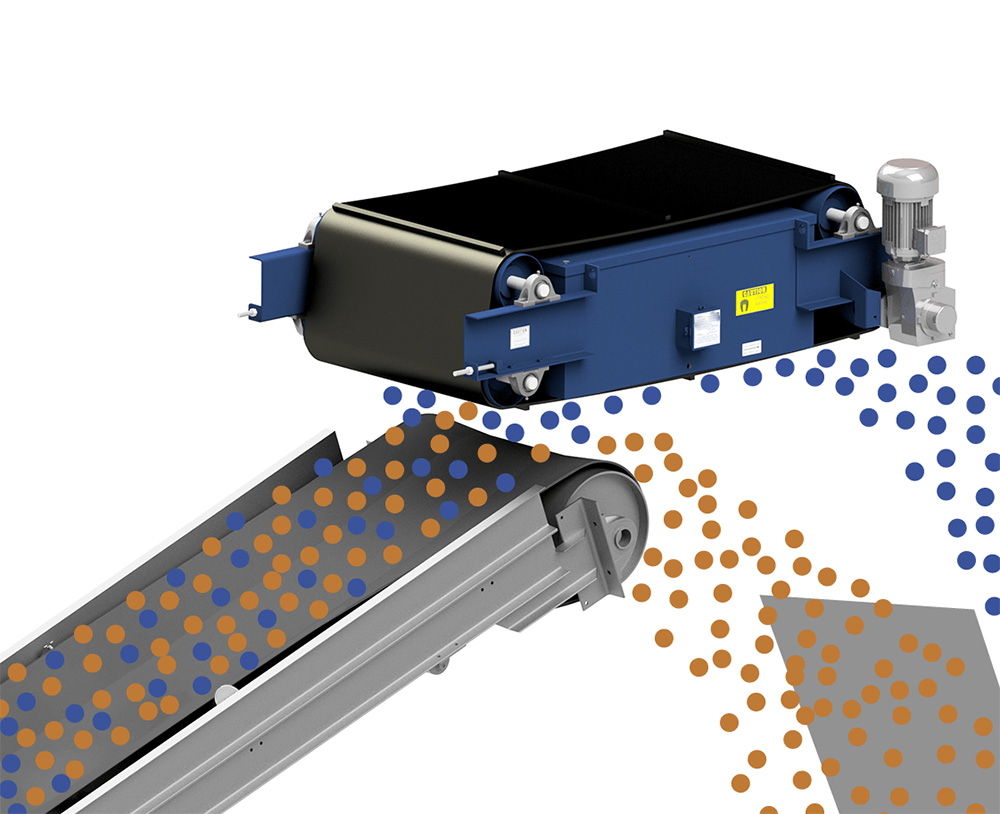

Inline Mounting Position	Crossbelt Over Conveyor	Crossbelt Over Head Pulley

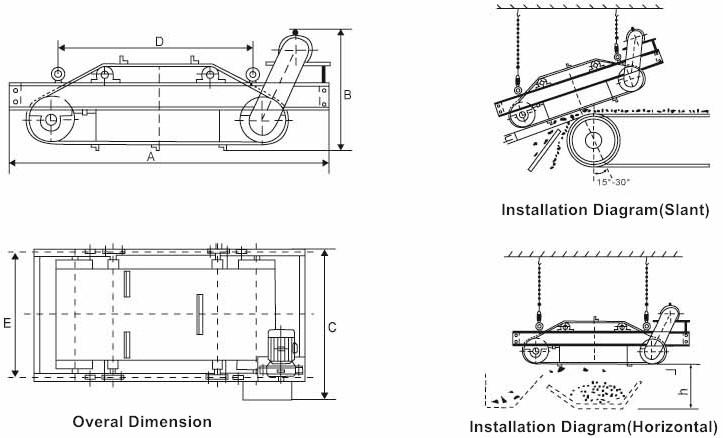

Dimensional Sketches and Installation Sketches:

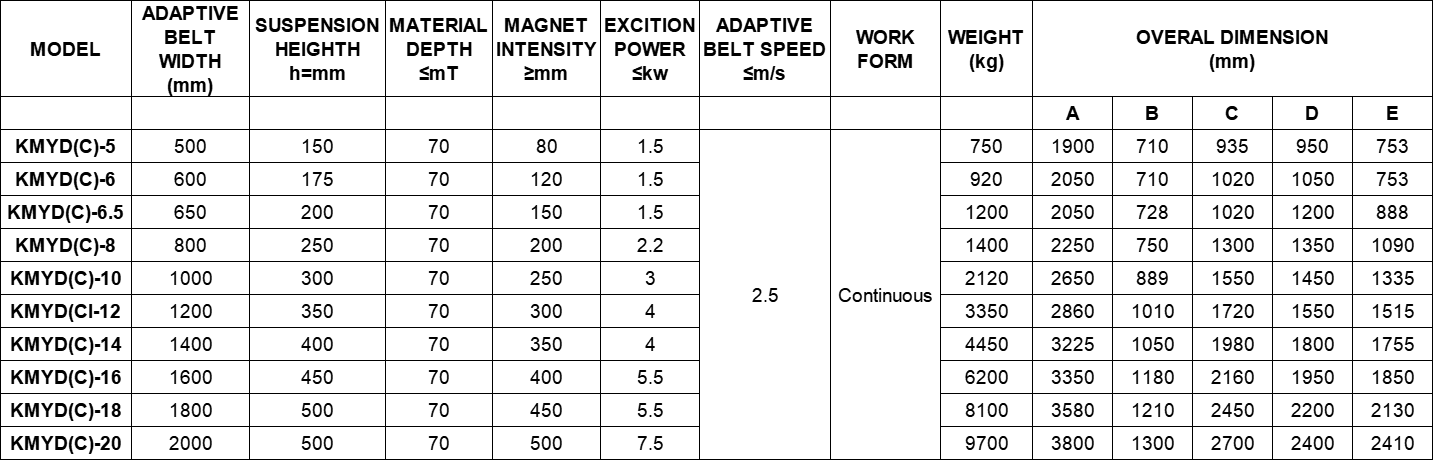

Technical Parameter Table:

Q&A

Q: Why is the magnetic component I received different from the picture on the website?

A: This is our latest style. The one on the web page was sent up before and has not been updated.

Q: Quality and raw materials. Can you prove that your products are safe and standard?

A: Our product meet your requirements. We can provide material safety certificate, Rosh, REACH certificate, appearance inspection certificate and so on.

Q: Do the magnets you make meet international standards?

A: The magnets we make meet international standards. We have all the certificates.

Q: What will you do if there is a quality problem?

A: If you have any problem after receiving the magnet, please contact us immediately and shoot a video to us. We make records and take pictures of all the details when we ship. If it's our fault, we'll take the blame. If it happened in transit, we are not responsible for it.
