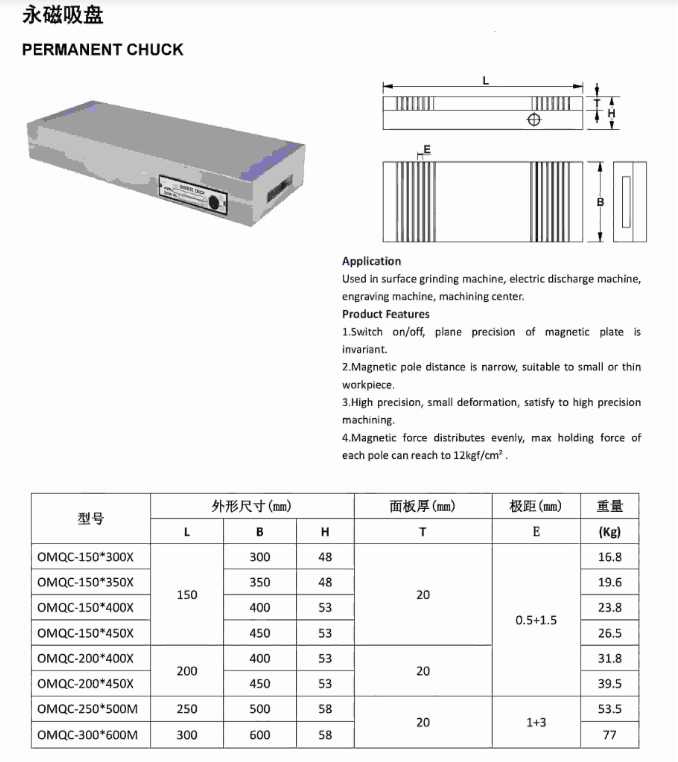

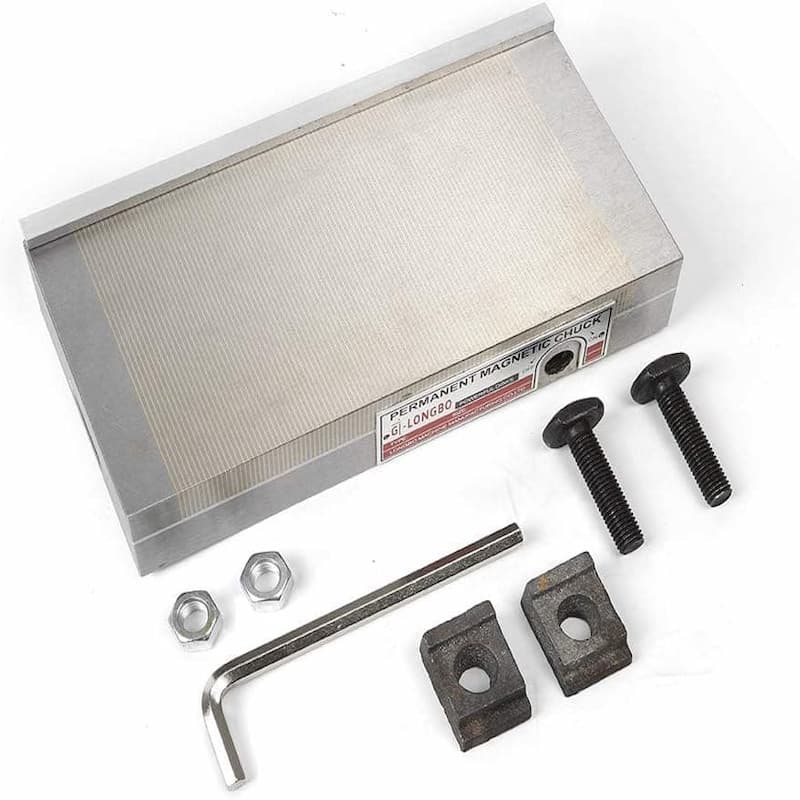

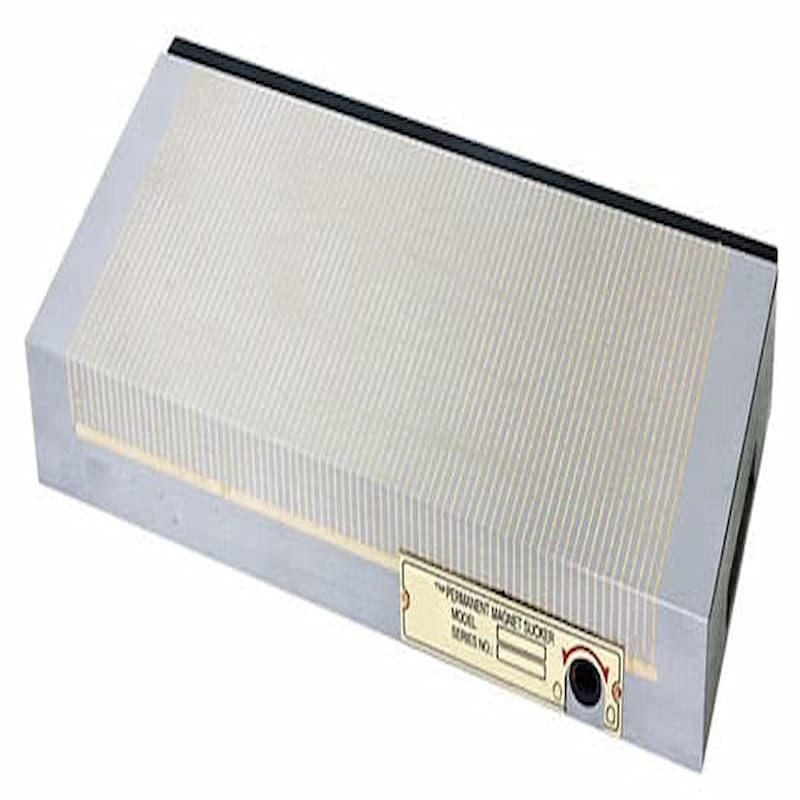

A permanent magnetic chuck is a device that uses high-performance permanent magnets to generate strong adsorption force and can firmly fix steel workpieces without an external power supply
Its features are safety and energy conservation, convenient operation, and magnetic switch control.
Item No :
XMOMKCOrder(MOQ) :
1Payment :
100% Payment In AdvanceProduct Origin :
ChinaShipping Port :
XiaMenLead Time :
7 days in stock,30-38 producion timeWeight :
Base on productionPermanent magnetic chuck
Basic Introduction
High holding power Waterproof construction
. Permanent magnetic chuck with NEODYMIUM magnets
. Parallel fine pole pitch with steel + brass
. Reinforced actuating mechanism
Application
Grinding, EDM, metrology
Max. temperature of use :80 °C
Nominal force :120 N/cm²
Pole pitch :2 mm, 0.5 mm of brass, 1.5 mm of steel
Admissible wear of top plate :6 mm
Magnetic field height :4 mm
Option:
Product Packaging：
Customized foam card slot packaging + 5 layers of corrugated cardboard to protect the magnets.
Safer/Environmentally Friendly/Faster/Efficient
FAQ
1. How to transport?
Express delivery, air freight and sea freight are all supported
If you have your own freight forwarder, we will also accept it
2. How can I pay?
We have the following payment methods for you to choose from: 1) Bank transfer 2) Pay online through Alibaba
3. How long is the delivery time of SmCo magnet?
The whole production process takes about 25-35 days.
